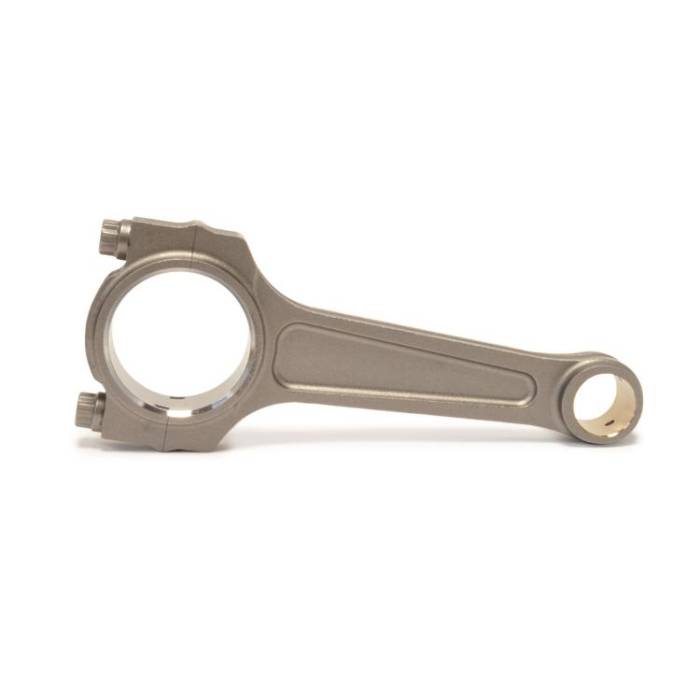

Manley Pro Series I-Beam Turbo Tuff Rods +2mm ARP 625+ (EJ20, EJ25)
SKU
man14436R6-4
Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. Our Pro Series "I" Beam is forged from 4340 aircraft quality vacuum degassed material. We utilize our proven "Turbo Tuff" design and add ARP 625+ cap screws. All rods are properly shot peened after machining and 100% magnafluxed.
All Manley connecting rod sets, are weight matched to ± 1.5 grams, big and small end bores are final honed to a tolerance of ± .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by our final inspection department; thus rendering a finished product that is second to none.
Manley Pro Series I-Beam Turbo Tuff Rod Specs
- Center-to-Center - 5.216"
- Big End Bore - 2.165"
- Big End Width - .840"
- Pin Diameter - .9055" (23mm)
- Pin Bore - .9063"
- Gram Weight - 590g
Features
- Forged from 4340 aircraft quality vacuum degassed material
- Shot peened after machining to MIL spec and 100% individually magnafluxed
- Specifically designed to handle high horsepower applications when using turbos and/or nitrous
- Fasteners are ARP 625+
- Flywheel horsepower range for these rods in a 4 cylinder application is 1,000+
- +2mm in length over stock rod length
**Special Order**
