Wisefab Front Knuckles (02-14 WRX, 04-14 STI)

Subaru Impreza is good performance car designed for rally. Because of its good performanceits more and more used for grip racing aswell. Lowering the car will give more grip and better handling, but then the factory designed kinematics wont work as they are supposed to. Wisefab Subaru Impreza knuckles / uprightsbring the roll center, bumpsteerandcamber curve back to normal range, provide better roll stiffness, handling and grip.

• This drop knuckle kit can be fitted to following models: Impreza (GM, GC, GF, 1992–2001) (GD, GG, 2000–2007) (GE, GV, GH, GR 2007–2014) (GJ, GP, 2011–2016) (VA, 2014-2020) Forester (SF, 1997–2002) (SG, 2002–2007)
• -2 kg lighter over OEM knuckle / upright
  But still maintaining required strength and stiffness


• Quicker steering ratio
  Steering ratio is slightly quicker compared to OEM


• Rollcenter correction
  -50mm drop from the knuckle / upright


• Mounting points for 5x100 or 5x114,3 wheel bearings
  Either 2005 - STI 5x114,3 bolted wheel bearing (28373VA000) or 2007 - 2013 WRX 5x100 bolted wheel bearing (28373FG000) can be used


• Bumpsteer adjustment
  Bumbsteer is adjusted via washers on the upright


• OEM wheel speed sensor
  Either 1992 - 2007 or 2008 - 2013 type can be used. Hardware for installing included


• CrMo spherical
  Rod end used instead of OEM tie rod


• STI or WRX shocks
  Adapter to fit either STI or WRX shock included

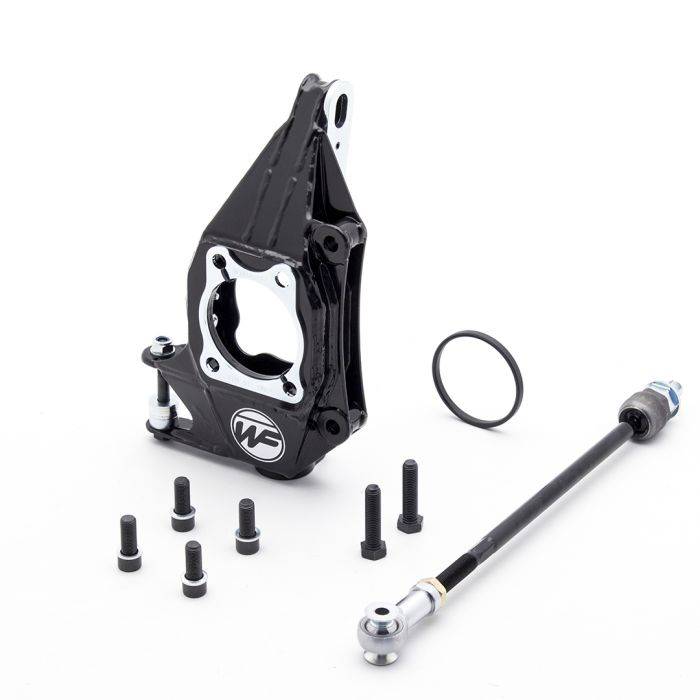

KIT INCLUDES

• Knuckles with hardware
• Assembled tie rods
• Installation guide

Other Information
This kit assumes coilovers for ride height correction
Original wheel speed sensor can be used
