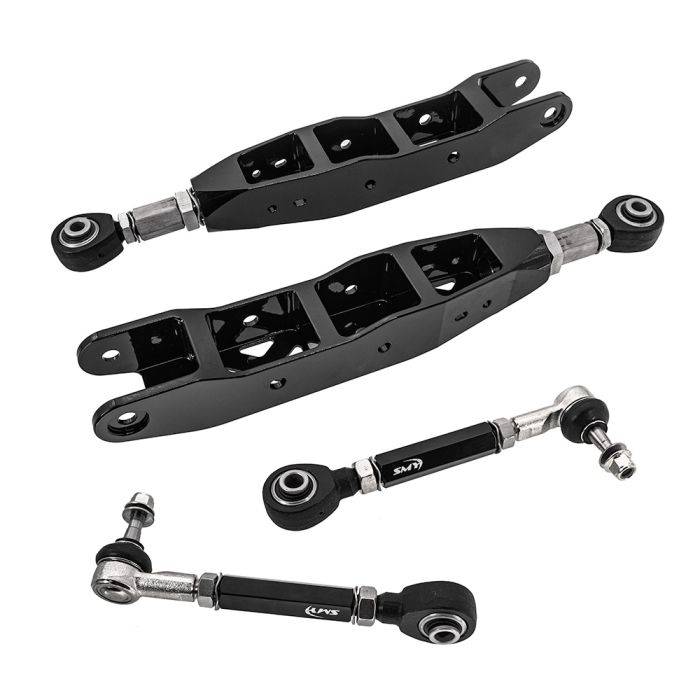

SMY CNC Aluminum Lower Control Arms & Toe Kit - Pillow Ball Bushings (08-21 WRX/STI, 2013+ BRZ)

Here you will find the upgraded SMY LCR kit. Our previous version was made from Steel. This new version has been completely reworked, resigned, and over-engineered to allow us to offer a LIFETIME warranty. CNC from high-grade aluminum, ours is lighter than the previous-gen (all Steel) by 2lbs each. The bushings have been upgraded to a thicker more robust to prolong life as well as comfort.

Features

• Material = Aluminum
• Adjustable Pillowball Ends
• Bushings Durometer Rating = 80
• Color = Gloss Black
• Location = Lower Rear
• Control Arms Camber Adjustment Range = +12mm to -12mm
• Control Arms have NEW Stronger Mounts
• Toe Arms Adjustment Range = +/- 3 Degrees

• UPGRADED Control Arm Ends STRONGER Better Same Price

Includes:

• 2 x Aluminum Rear Control Arms (1 Pair)
• 2 x Steel Toe Arms (1 Pair) = SMY-SUS-TOE-GR
• Hardware
• SMY Decals
• Lifetime Warranty

Installation:

• Control Arm Endlink bolts = 34 Foot-lbs
• Control Arm All 3 other points = 89 Foot-lbs
• Toe Arms Subframe Side = 74 Foot-lbs
• Toe Arms Other End = 44 Foot-lbs
• Alignment is highly Recommended after installation
• TO PROPERLY TORQUE DOWN SUSPENSION THE PARTS MUST BE UNDER FULL LOAD, NOT SUSPENDED IN THE AIR
