Haltech Nexus R5 - Universal
Only %1 left
SKU
Haltech Nexus R5 - Universal
NEXUS R5 is the new Haltech flagship product combining the functionality of a power distribution module, a data logger, a dual channel wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
FEATURES
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
- 18 x peak/hold injector drivers (can be used as low side drive outputs)
- 12 x low current ignition outputs (can be used as low side drive outputs)
- 8 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 10 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 2 x onboard wideband controllers, supporting NTK and LSU4.9
- 3 x CAN ports with switchable termination
Suits: Racing application where advanced race features, data logging and power management control is required.

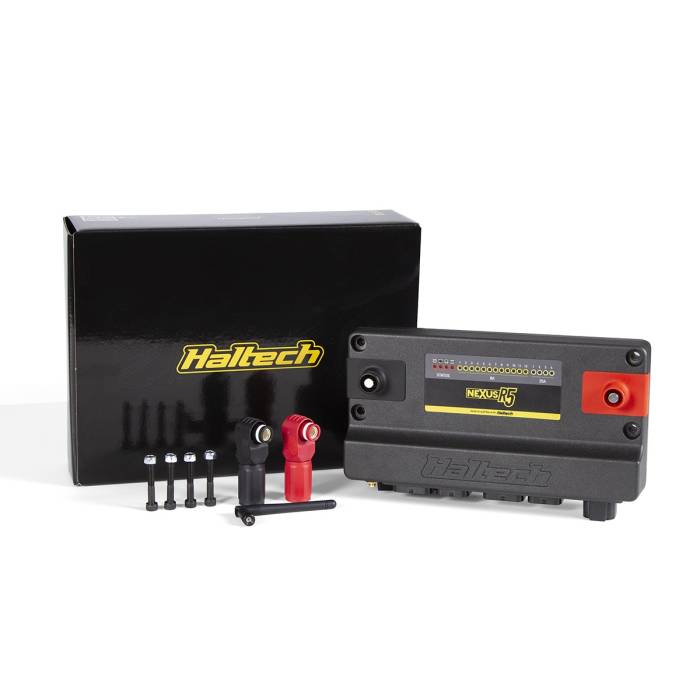

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap, USB drive with NSP Software. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4.
[ This is for motorsports use only, and this is never to be used in a street car that is driven on the street. ]
**Special Order**
