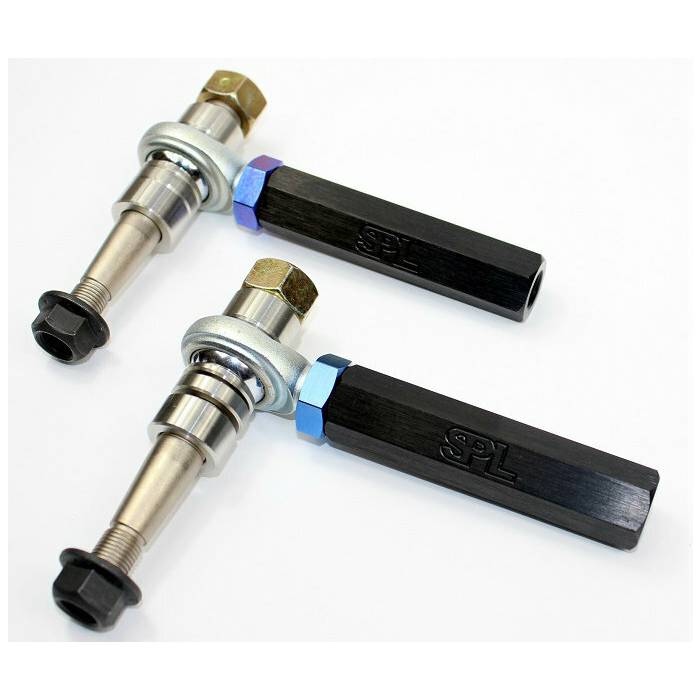

SPL Front Tie Rod Ends - Bumpsteer Adjustable (08+ WRX, 08-21 STI, 13+ BRZ)

SPL Tie Rod Ends for the GR86 / BRZ / GT86 / FR-S allows for bumpsteer adjustment by allowing the tie rod end pivot to be relocated with the use of spacers. On lowered cars, this results in less dynamic toe change (aka bumpsteer) as the suspension compresses (bump) during cornering and over rough roads, resulting in more predictable handling, less tire shoulder wear, and better stability over rough roads and track curbing.

Benefits

• Large Range of Bumpsteer Correction
• Lightweight: 2.22 lbs (1.0 kg) / 1.11 lbs (0.5 kg) per Side
• Improves Steering Feel, Handling, and Stability Over Bumps, Especially While Braking/Turning
• Reduced Front Tire Toe Wear
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Aluminum Turnbuckle
• 6061-T6 Aluminum Ring Spacer (For GR86 / 2nd Gen BRZ)
• 4140 Chromoly Steel Tapered Stud
• 304 Stainless Steel 1/8", 1/4", and 1/2" Spacers
• Ti-6Al-4V Titanium Jam Nut (Anodized Blue)

Replaces OEM Part Numbers

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

Toyota
SU003-00833
SU003-00834

Subaru
34161CA000
34161CA010
34161CC000
34161CC010
