Brembo GT Front 4-Pot (13-20 BRZ) - Cast Monobloc

[ GT-1P-.8002A ]

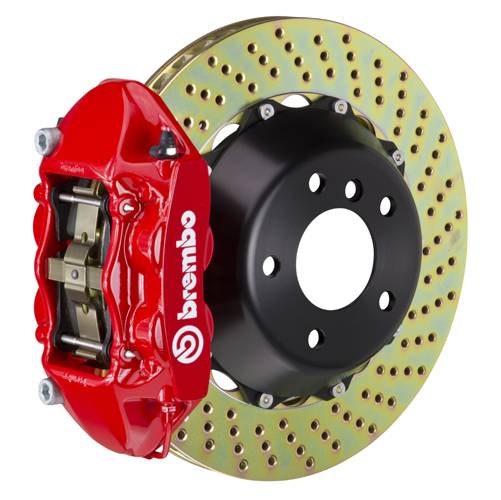

(F) 4-Piston Monobloc Calipers | 345x28mm (13.6") 2-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Included

• Cross Drilled
• Slotted
• Type 3

Disc Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
Disc Diameter: 345mm
Disc Width (Measurement): 28mm
Disc Air Gap (Measurement): 16mm
Disc Annulus (Measurement): 54mm
Disc Construction: 2-Piece Disc Assembly
Disc Vane Design (Measurement): Vented Curved 48 Vane
Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

Friction Material
Pad Compound: Brembo High Performance FM1000
Pad Volume / Surface Area: 76.4 | 62.1

Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

[ GT-1S_.6003A ]
(F) 4-Piston Cast Monobloc Calipers | 326x30mm (12.8'') 1-Piece Discs | Complete Axle Set | Pre-Assembled | All Necessary Hardware Include

Caliper
Caliper Body: Cast Monobloc Radial Mount
Caliper Piston Configuration: 4-Piston
Caliper Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

Disc
Disc Type:

• Cross Drilled
• Slotted

Disc Material/Finish: High Carbon / Corrosion Resistant Plating
Disc Diameter: 326mm
Disc Width (Measurement): 30mm
Disc Air Gap (Measurement): 12mm
Disc Annulus (Measurement): 64mm
Disc Construction: 1-Piece Disc
Disc Vane Design (Measurement): Vented Curved 48 Vane

Included Hardware
Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation
